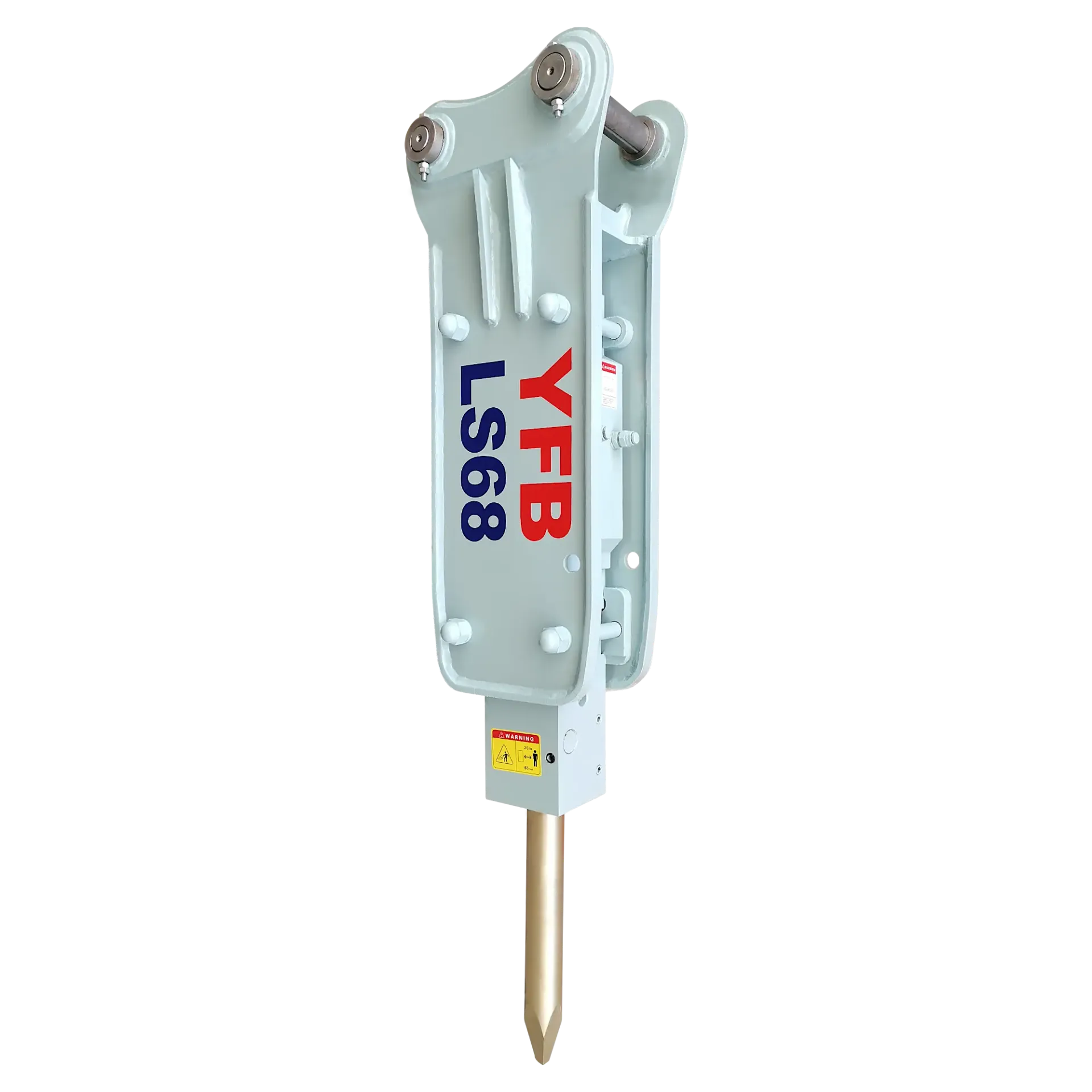

YFB68 Hydraulic Breaker – SB40 Type Compatible Rock Hammer for Excavators

标准套件随机器发货

木箱

Toolbox

工具箱

Inflation Kit

充气套件

Nitrogen Cylinder

氮气瓶

Chisel

钎杆

Oil Pipe

油管

Hydraulic Breaker Technical Specifications

Parameters	Type	Unit	YFB-35	YFB-40	YFB-45	YFB-53	YFB-60	YFB-68	YFB-75	YFB-85	YFB-120
Light-Duty Range
Parameters	Type	Unit	Operating Weight	Side	kg	82	90	100	143	240	250	380	510	767
Top	90	110		122		150	280	300	430	550	820
Silenced	98	130		150		190	320	340	480	580	950
Backhoe	-	-		110		162	280	300	400	-	-
Skid loader	-	-		235		250	378	394	450	-	-
Flow Rate		L/Min	10-30	15-30	20-40	25-45	30-60	36-60	50-90	60-100	80-120
Working Pressure		Bar	80-110	90-120	90-120	90-120	100-130	110-140	120-170	130-160	150-170
Impact Frequency		Bpm	500-1200	500-1000	500-1000	500-1000	500-900	500-900	400-800	400-800	400-700
Impact Energy		Joule	150	180	240	320	450	600	720	1200	2000
Hose Diameter		Inch	1/2	1/2	1/2	1/2	1/2	1/2	1/2	3/4	3/4
Chisel Diameter		mm	35	40	45	53	60	68	75	85	100
Excavator Weight Selection		Ton	0.6-1	0.8-1.2	1-2	2-5	4-6	5-7	7-9	9-12	12-17

Parameters	Type	Unit	YFB-125	YFB-135	YFB-140	YFB-150	YFB-155
Medium-Duty Range
Parameters	Type	Unit	Operating Weight	Side	kg	1320	1498	1700	2420	2500
Top	1380	1520		1780		2500	2600
Silenced	1450	1680		1850		2600	2750
Flow Rate		L/Min	90-120	130-170	150-190	170-220	170-220
Working Pressure		Bar	150-170	160-180	160-180	180-230	180-240
Impact Frequency		Bpm	400-650	400-650	400-500	300-450	300-400
Impact Energy		Joule	2950	4500	5200	6000	6300
Hose Diameter		Inch	1″	1″	1″	1″	1″
Chisel Diameter		mm	125	135	140	150	155
Excavator Weight Selection		Ton	15-18	18-25	20-30	25-30	27-36

Parameters	Type	Unit	YFB-165	YFB-175	YFB-180	YFB-190	YFB-195	YFB-205	YFB-215
Heavy-Duty Range
Parameters	Type	Unit	Operating Weight	Side	kg	3245	3750	3900	4230	4876	5823	6056
Top	3468	3970		4100		4460	5036	6150	6330
Silenced	3692	4150		4200		4760	5380	6500	6800
Flow Rate		L/Min	200-250	250-280	250-280	250-280	250-280	250-280	250-280
Working Pressure		Bar	200-220	200-240	200-240	280-310	200-240	200-240	200-240
Impact Frequency		Bpm	250-400	250-350	230-320	230-320	210-300	200-300	200-300
Impact Energy		Joule	11320	12000	14200	15800	17300	19800	20500
Hose Diameter		Inch	1½″	1½″	1½″	1½″	1½″	1½″	1½″
Chisel Diameter		mm	165	175	180	190	195	205	215

Product Attributes

Basic Information
Hydraulic Breaker Types	Top-mounted/Integrated Open Housing or Top-mounted/Split Open Housing or Side-mounted/Integrated Open Housing or Backhoe Loader Type or Skid Steer Loader Type
Product Brand	YFB or OEM
Hose Diameter	1/2 Inch
Diameter of the Chisel	68 mm

After-sales Service
Lead Time	5 Days
Warranty Period	1 Year

Technical Specifications
Hydraulic Breaker Weight	300 kg
Hydraulic Flow	36-60 L/Min
Working Pressure	110-140 Bar
Impact Rate	500-900 BPM
Impact Energy	600 Joule (J)
Carrier Machine Weight	5-8 t

Tags
Tags	Mini Class Equipment Excavator Attachment Hydraulic Hammer
